Project: C34 Unswitched 12V Power

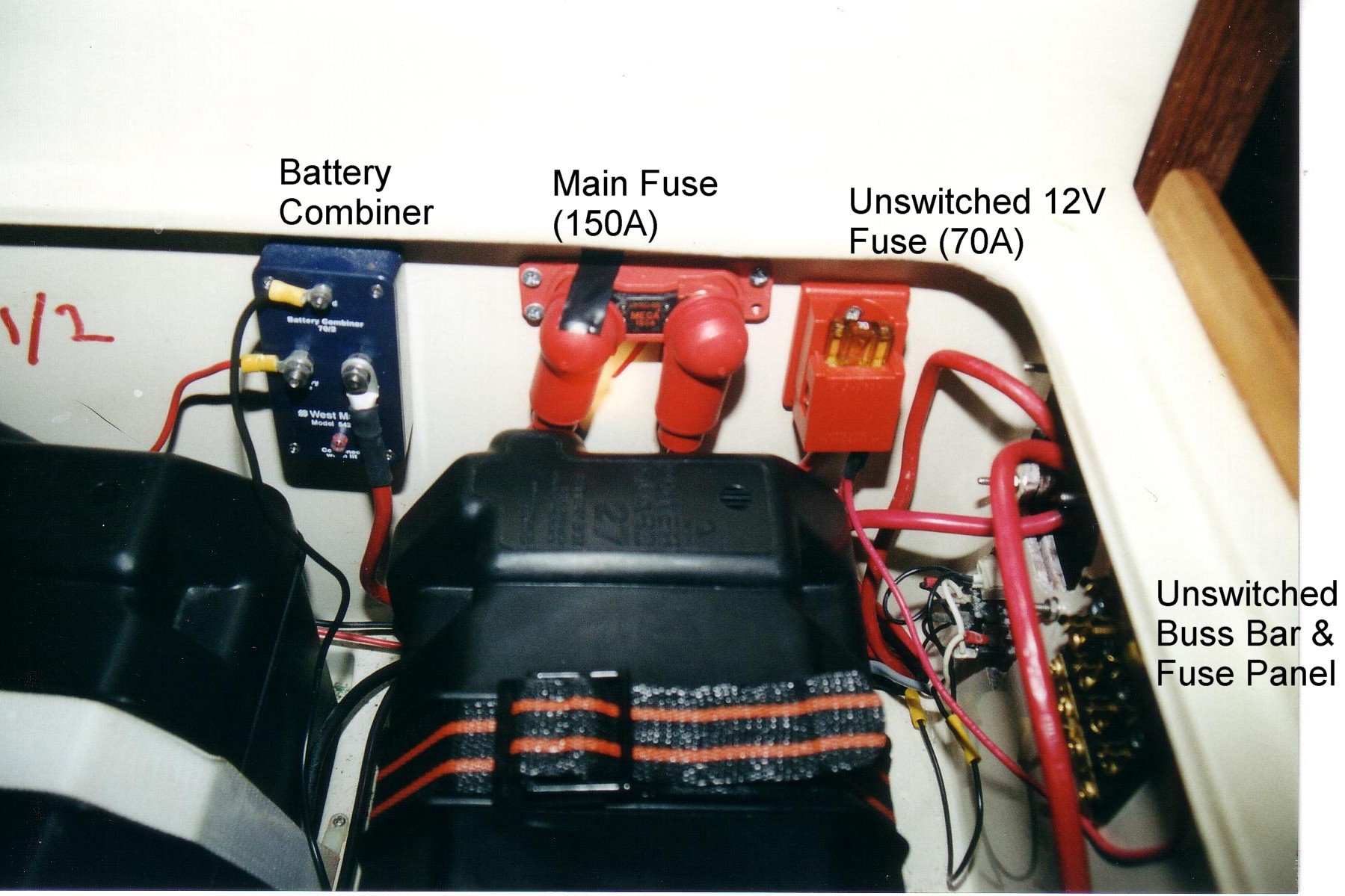

The previous owner just ran a small wire with a BIG ring lug to the battery terminal to get unswitched 12V power.  After making other battery power upgrades, I decided to "do it right".  I've added heavy gage wire (#8) from the battery to a 70A fuse right in the battery box.  From the "output" side of the fuse, I put a combination buss-bar & fuse panel for the unswitched 12V loads (bilge pump, bilge high water alarm, and battery monitor power), each with an appropriately sized traditional fuse.  I also ran another #8 wire from the 70A fuse "output" along side the switched main power cables from the battery compartment to another buss-bar & fuse panel positioned behind the main electrical switch panel.  And again, any power from that panel passes through an appropriately sized traditional fuse.

      click on thumbnail images to see full size pictures

Mark Elkin, #133 Yorkshire Rose
